Menus and GUI

Mantle Mobile uses a sidebar-driven layout. Each section below describes the purpose of the tab, primary actions, and prerequisites. Use this as a quick reference while orienting new operators.

Section	Purpose	Key Actions
Create	Wizards for configs and baselines	Record configs, assemble baselines
Devices	Manage connected and database devices	Import, edit, export device records
Enterprise	Register with Mantle 2.0 and sync assets	Import tokens, register/unregister nodes
Assets	Manage APKs, files, configs, baselines	Import/export assets and install APKs
Provision	Launch and track provisions	Start provisions, monitor progress
Settings	Licensing and application preferences	Upload license, view version info

Create

Use Create > Create Config to record in-app workflows and Create > Create Baseline to assemble prep settings, APKs, and configs.

Devices

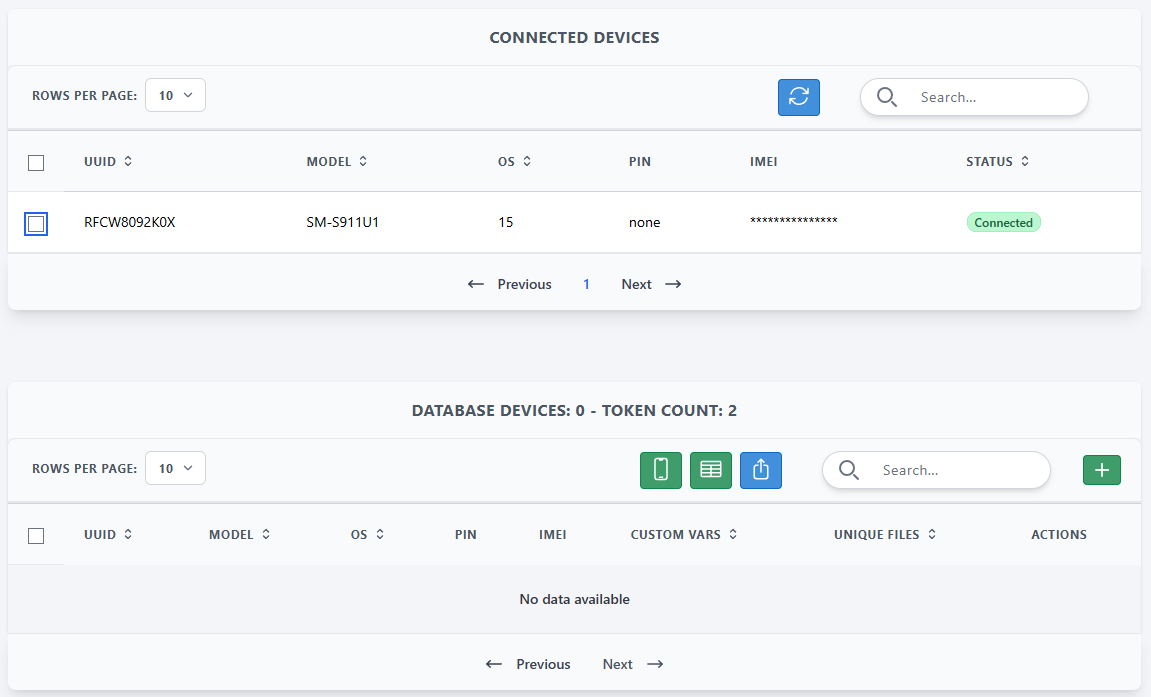

Two tables drive device management:

Connected Devices – live USB-connected hardware
Device Database – encrypted database records used by baselines

Key actions:

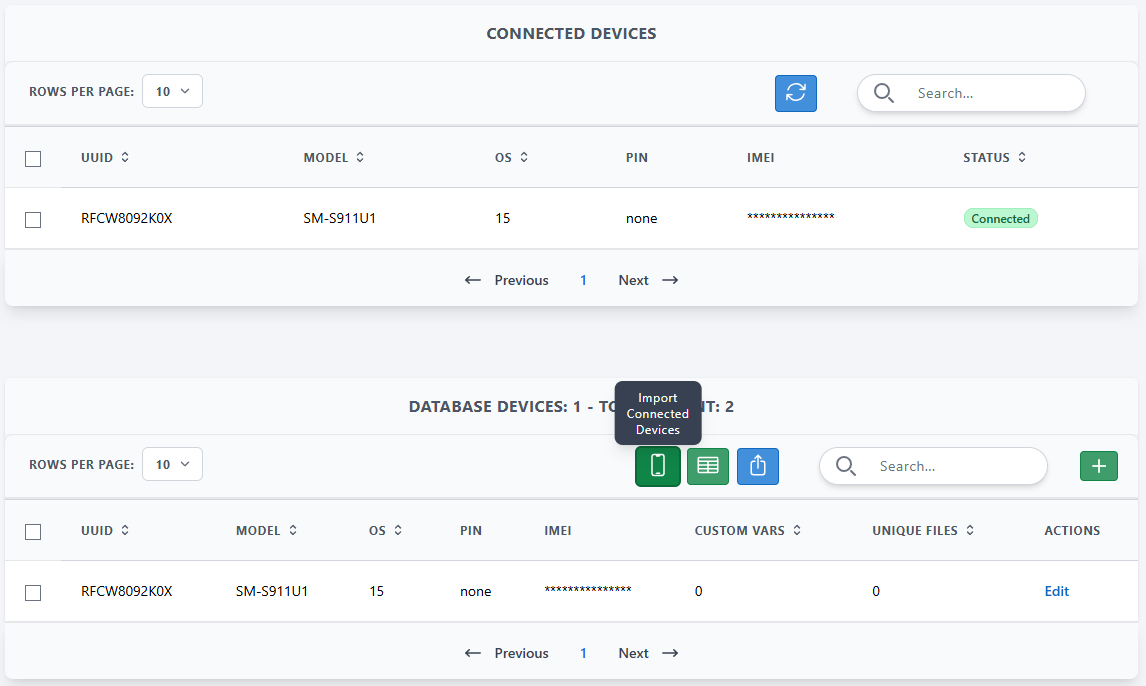

Import connected devices

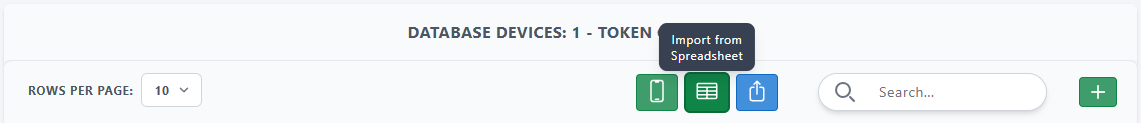

Import/export devices from spreadsheet

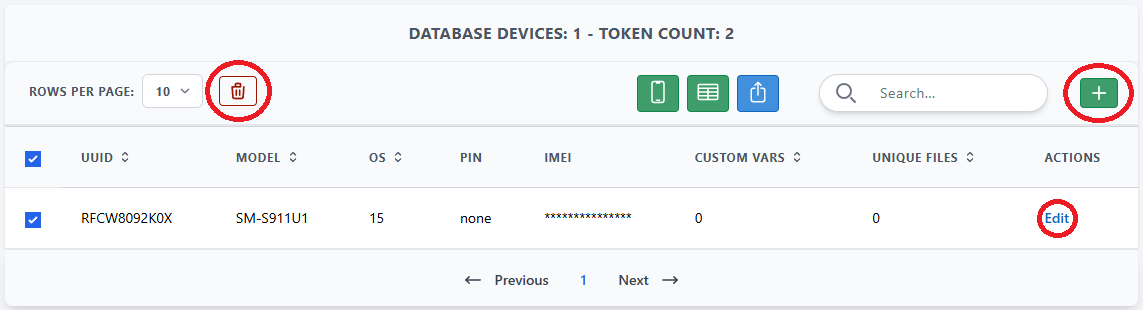

Add, edit, and delete database devices

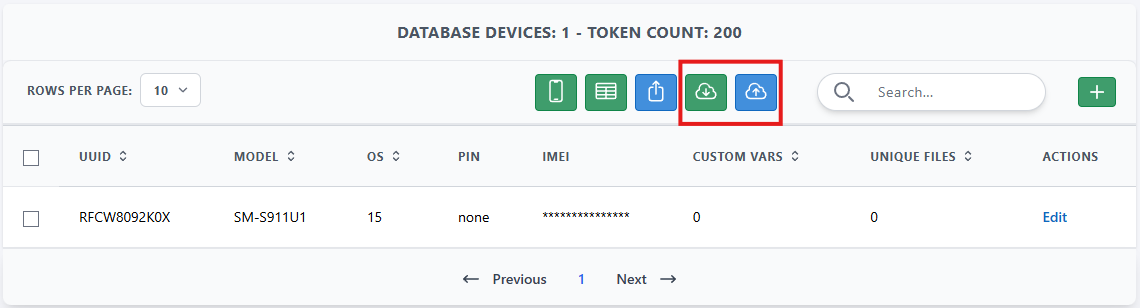

Import and export devices with Enterprise (when registered)

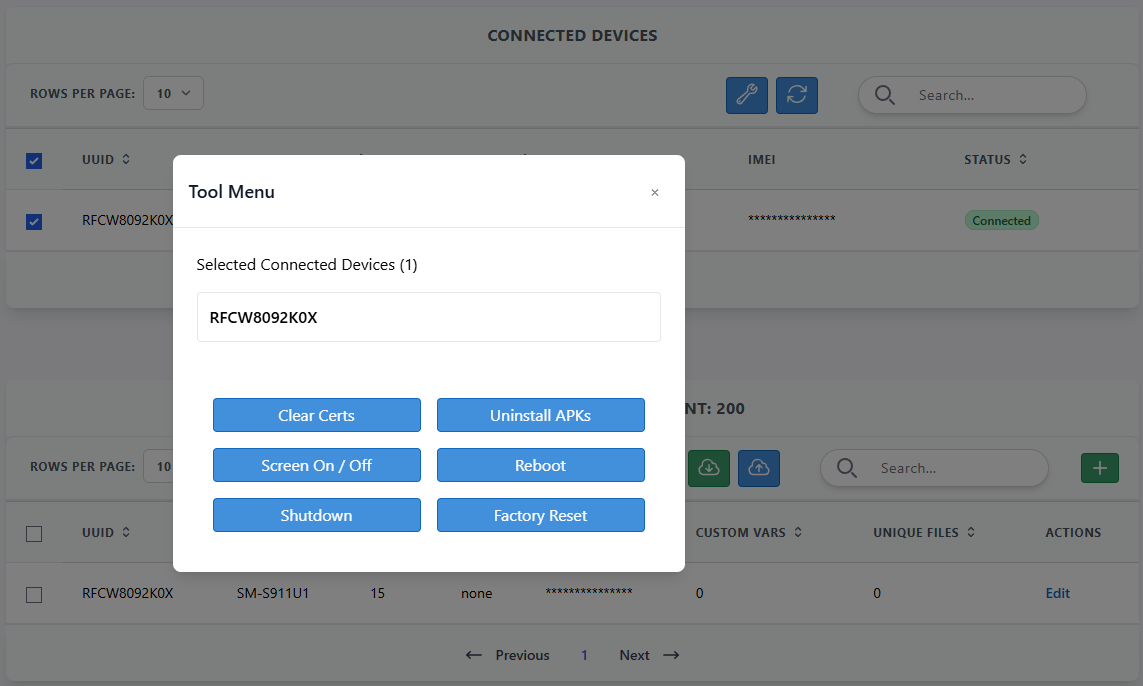

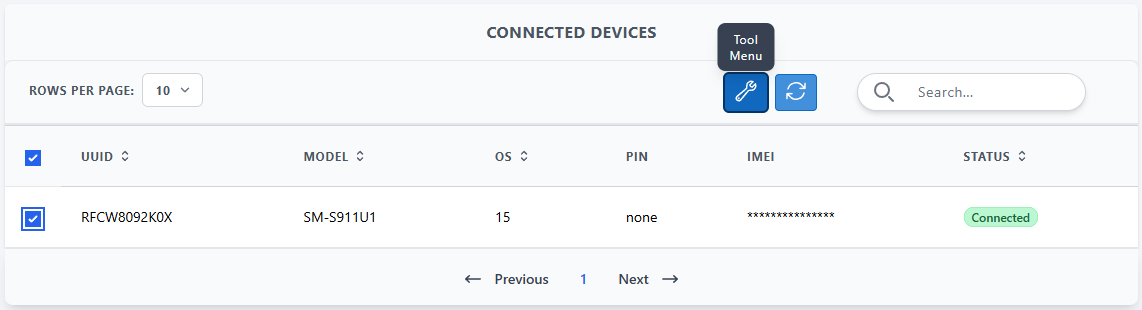

Device tools operate on selected connected devices.

Important Tool Behavior

Tool actions are disabled if selected connected devices are not imported into the device database.

Common actions include importing connected devices, editing metadata, and exporting/importing spreadsheets for offline editing.

Enterprise

Enterprise includes tabs:

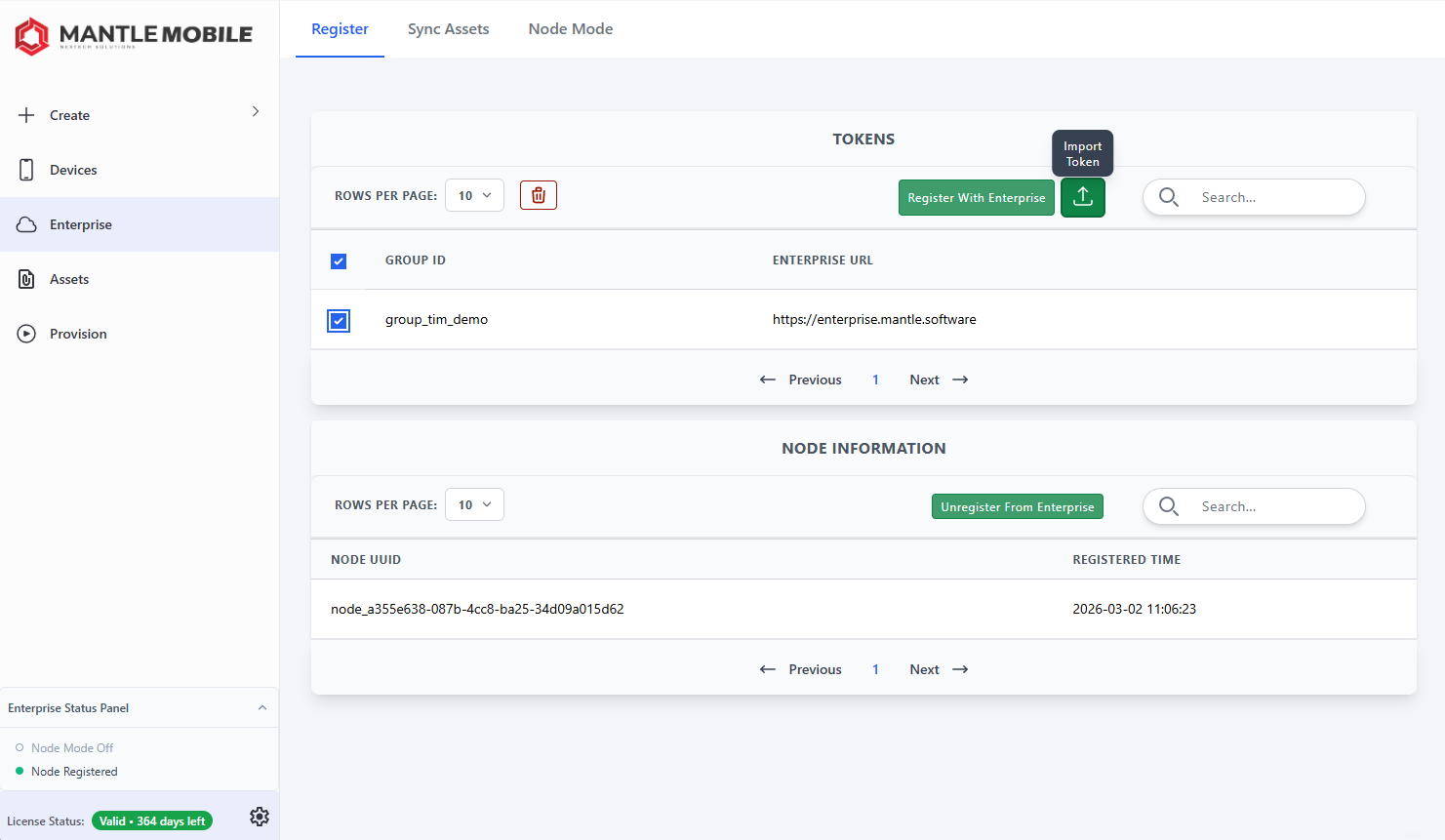

Register

Import token
Register node
Unregister node
Review node information

Sync Assets

Available enterprise asset categories:

APKs
Unique Files
Common Files
Configs
Baselines
ATAK Prefs

Actions:

Download selected assets
Download all missing assets

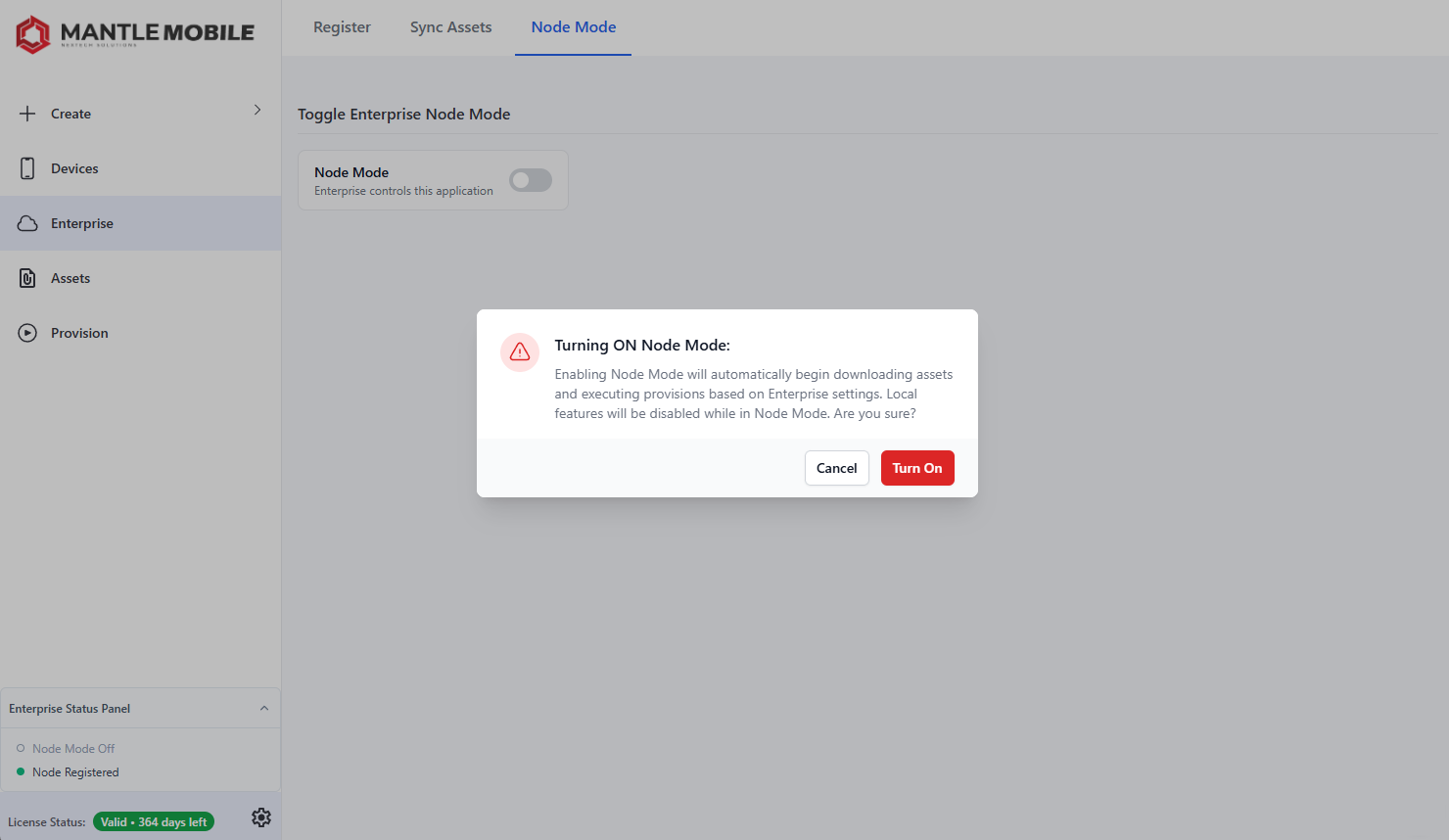

Node Mode

Node Mode enables enterprise-controlled automation.

When enabled, the confirmation warns that the app may automatically download assets and execute provisions, and that local features are disabled during Node Mode.

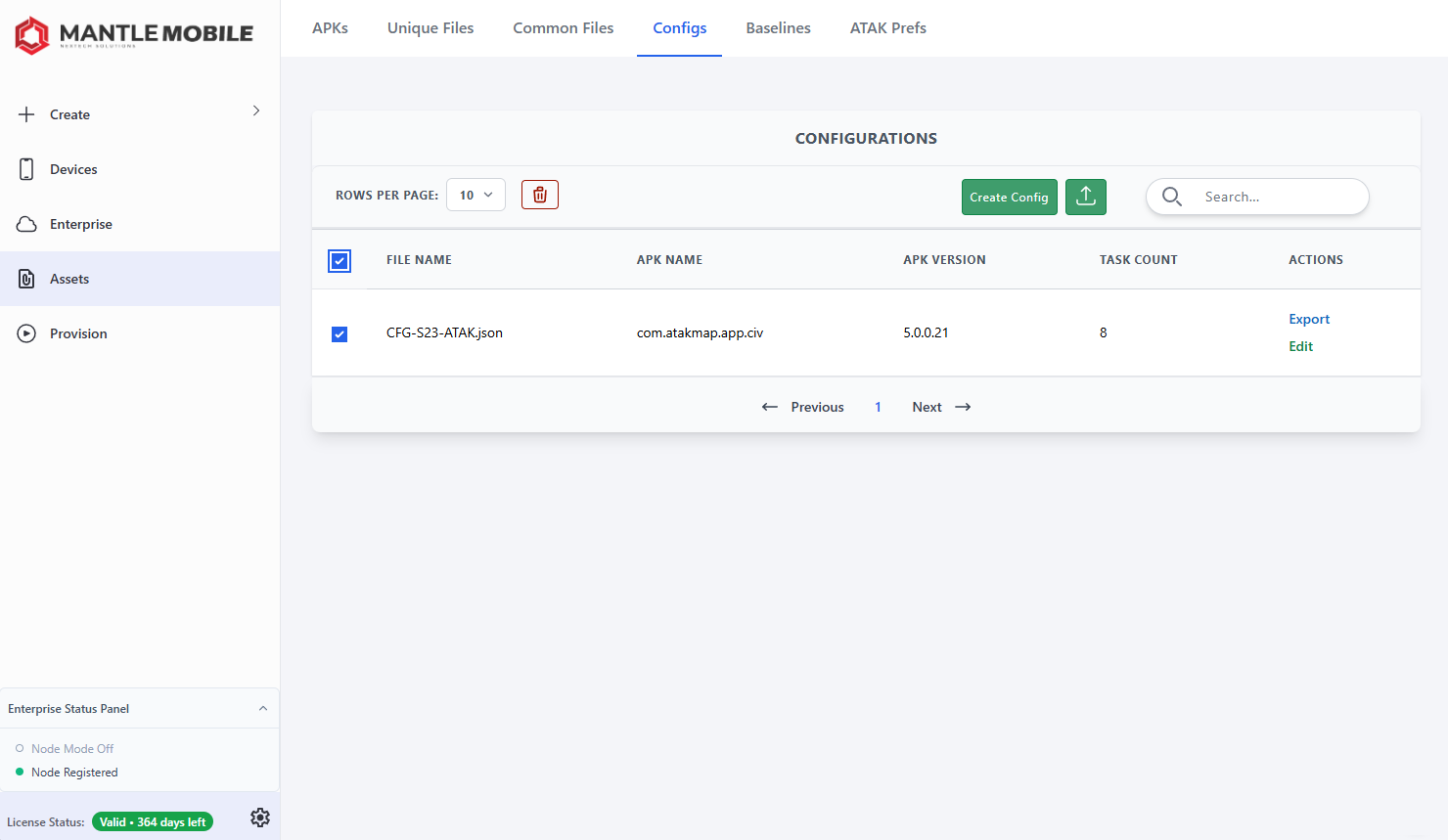

Assets

Assets contains tabs:

APKs
Unique Files
Common Files
Configs
Baselines
ATAK Prefs

Common actions across tabs:

Import
Delete selected

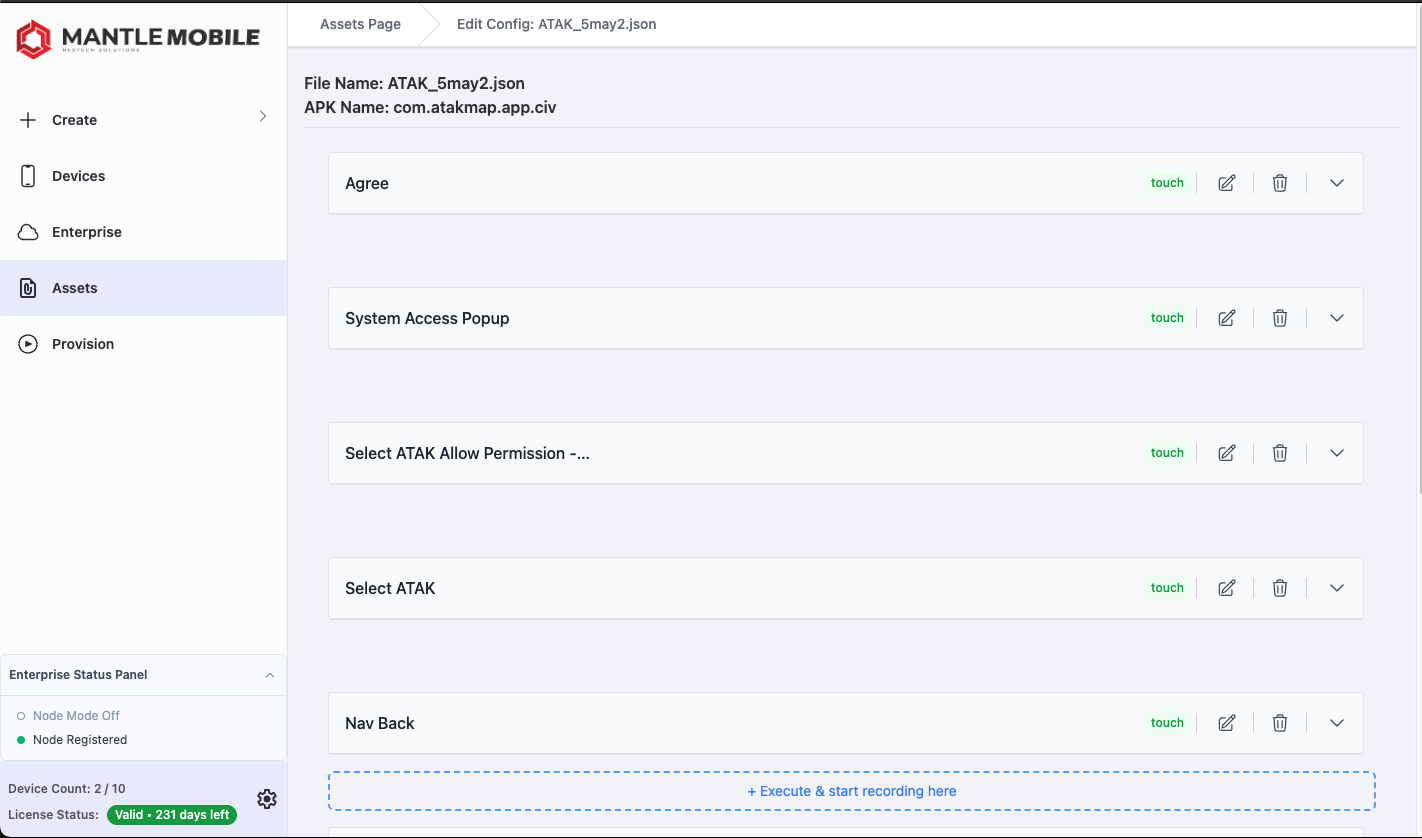

Edit (for configs, baselines, and ATAK Prefs)

Provision

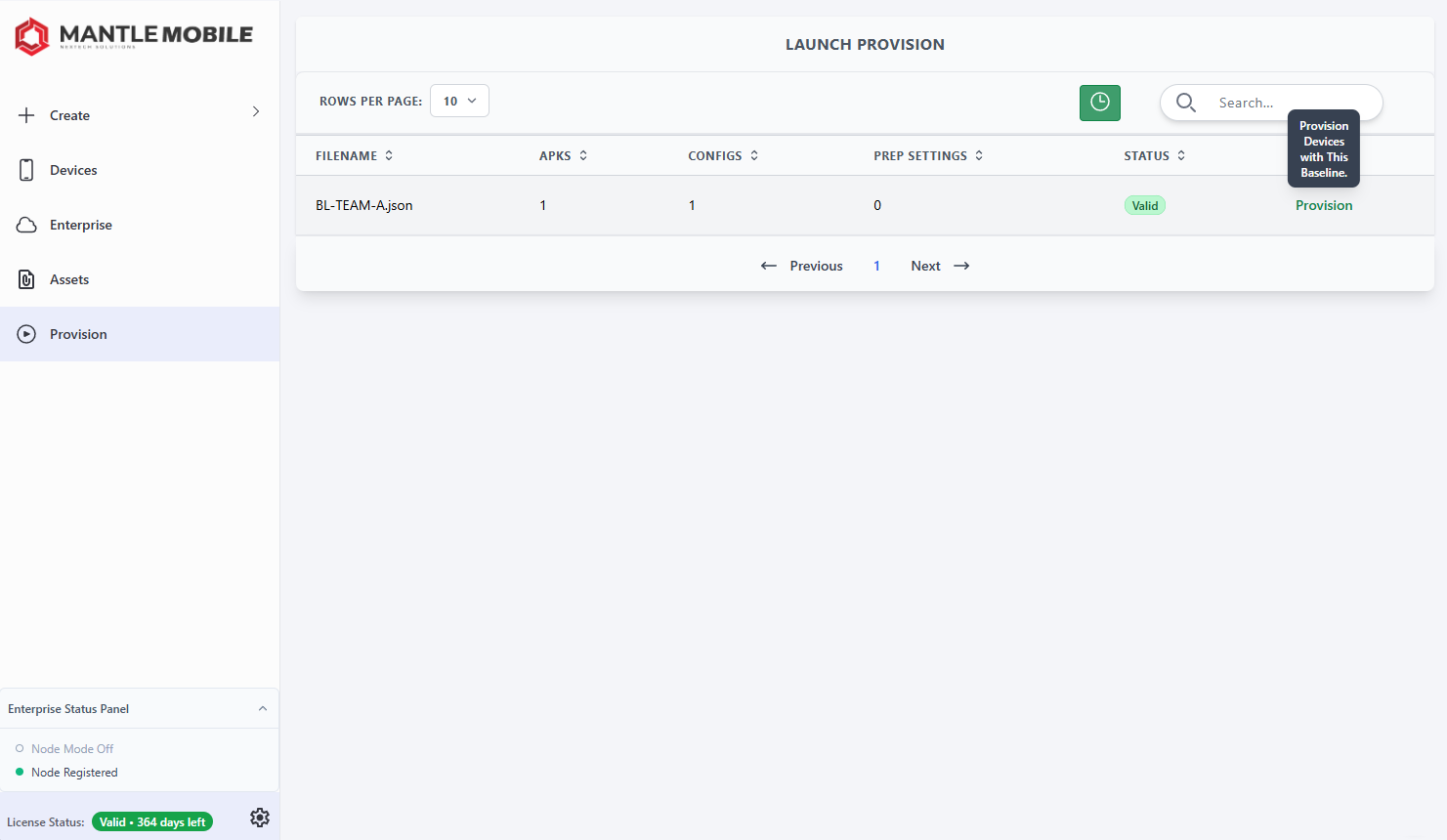

Provision lists baselines and readiness status.

Actions:

Provision when baseline status is ready
Import Assets when baseline status indicates missing dependencies
Open previous/active run details in Track Provision

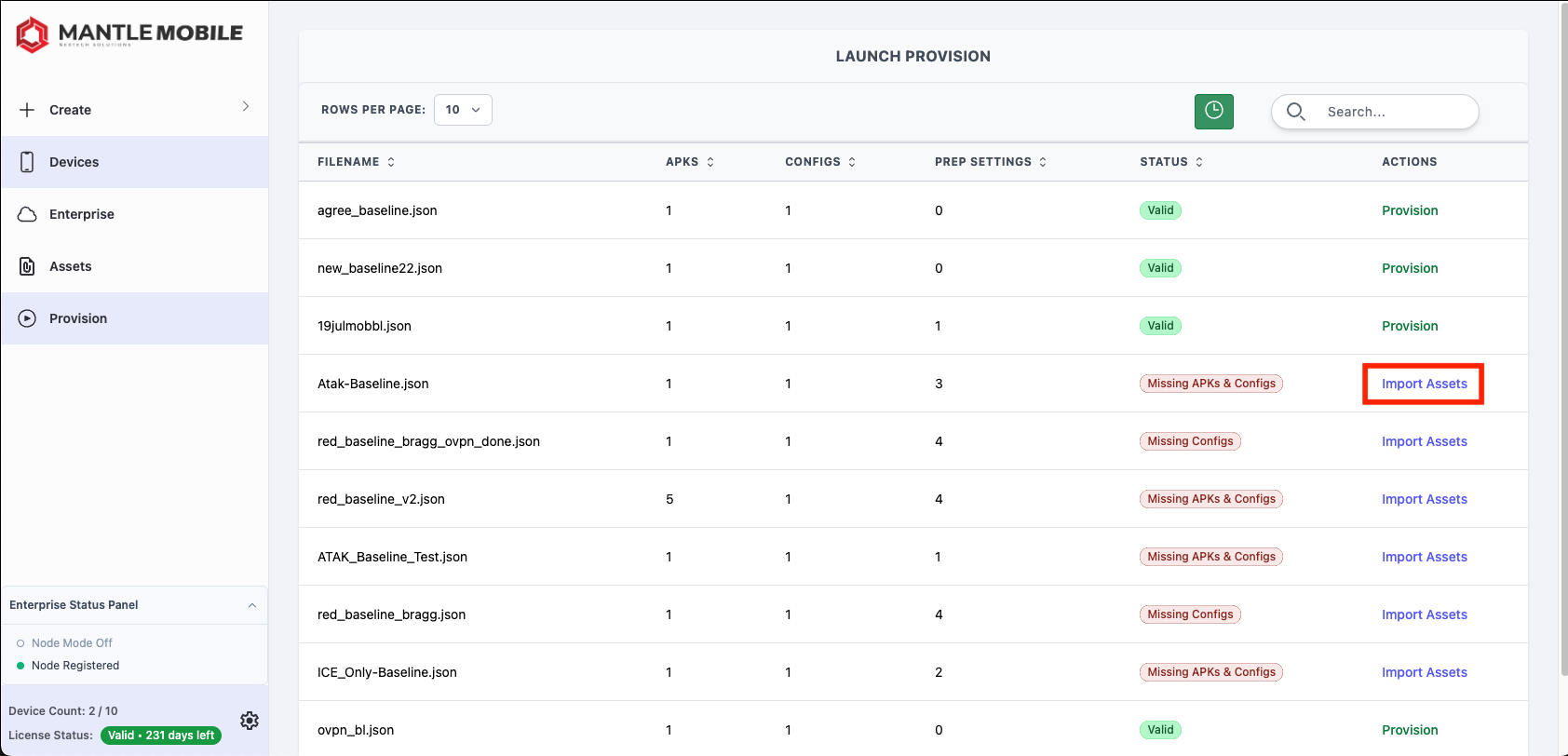

Baseline Readiness

If required assets are missing for a baseline, the status indicates missing dependencies and the action changes to Import Assets.

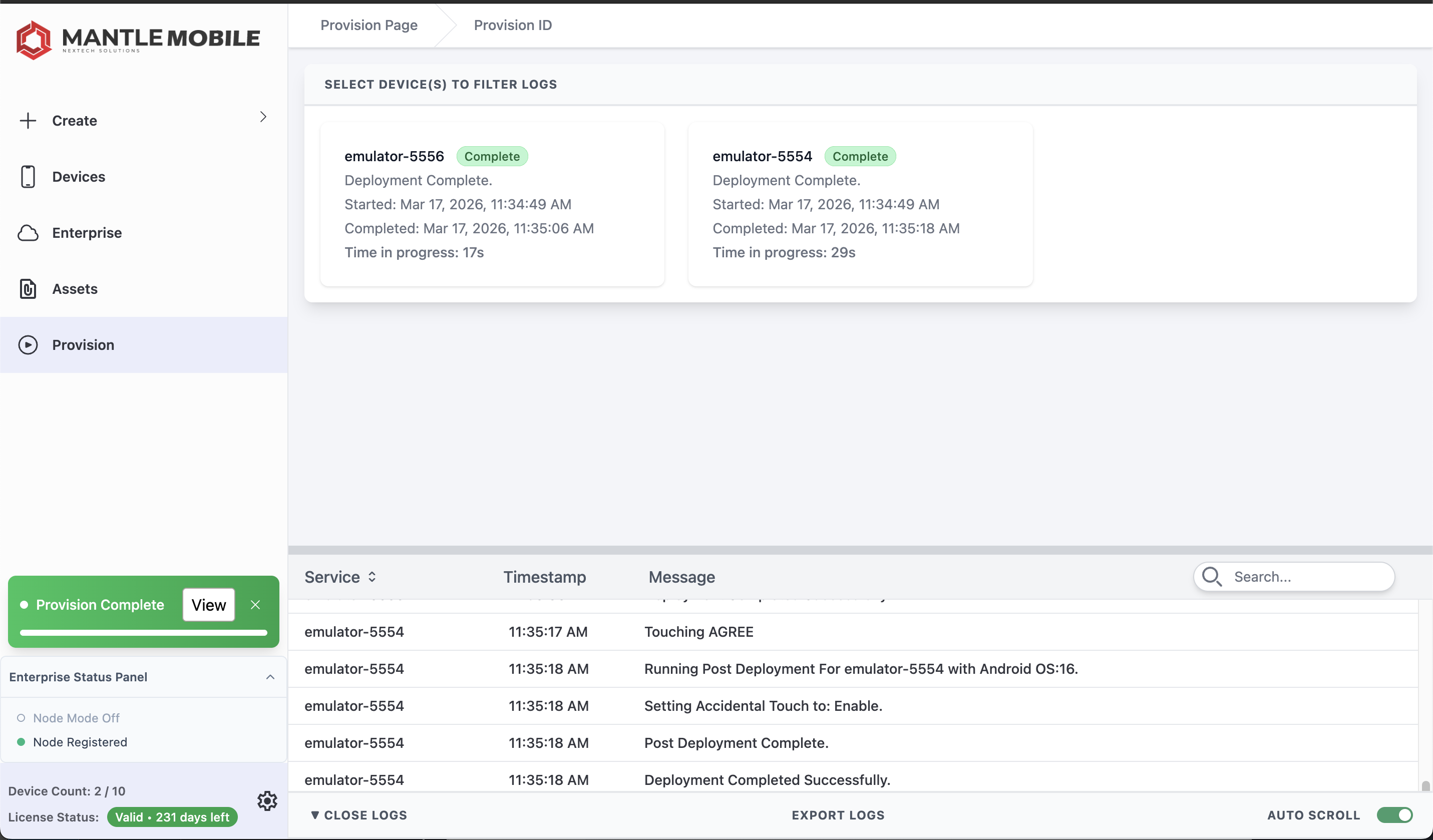

Track Provision

Track Provision includes:

Device status tiles
Started/completed timestamps
Duration
Live log stream
Device-based log filtering
Cancel Provision button while a run is in progress
Log export action

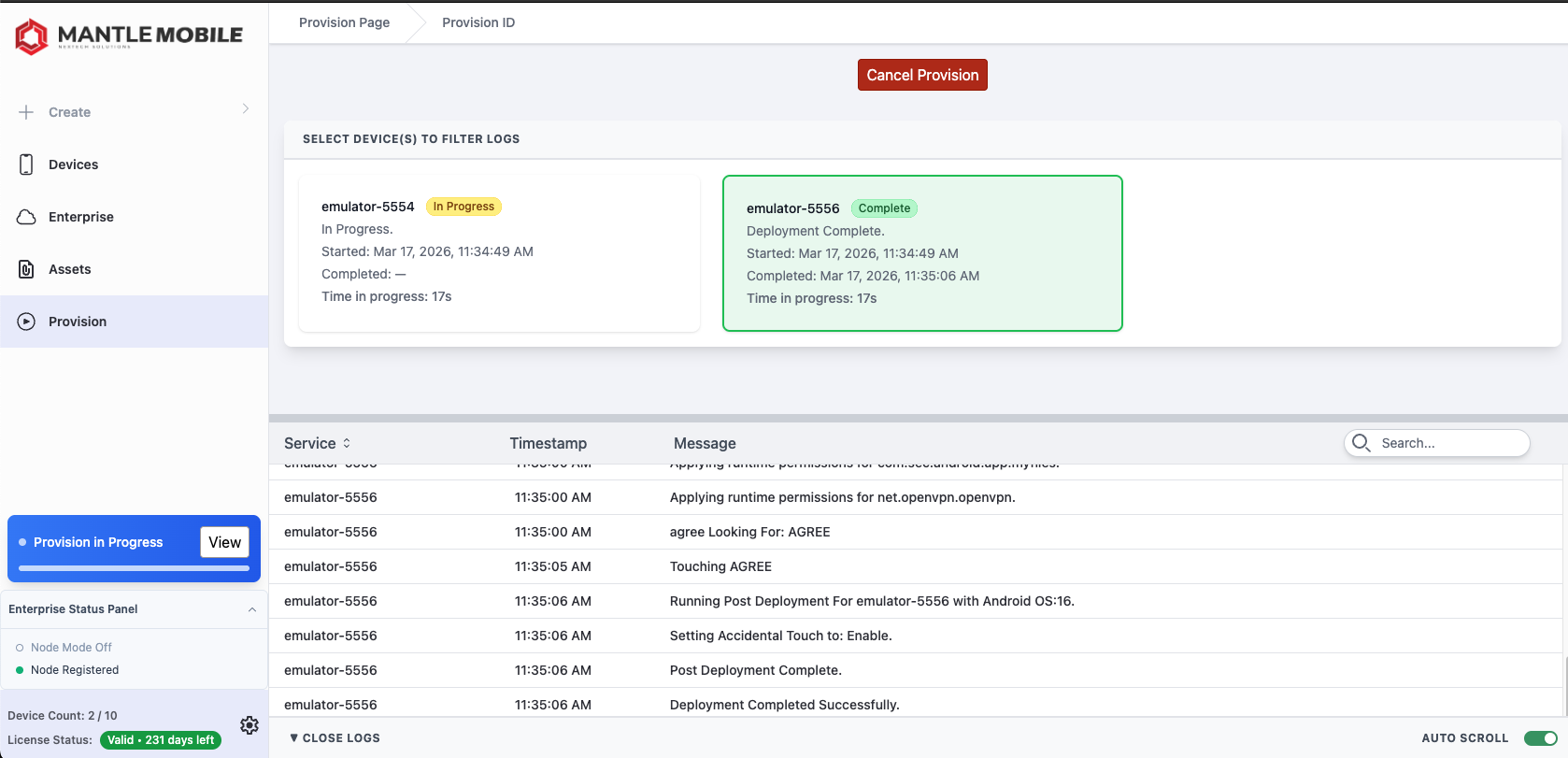

Selecting a device card in the Track Provision page will filter the logs for that device.

This is helpful for tracking if a device fails to provision.

Settings

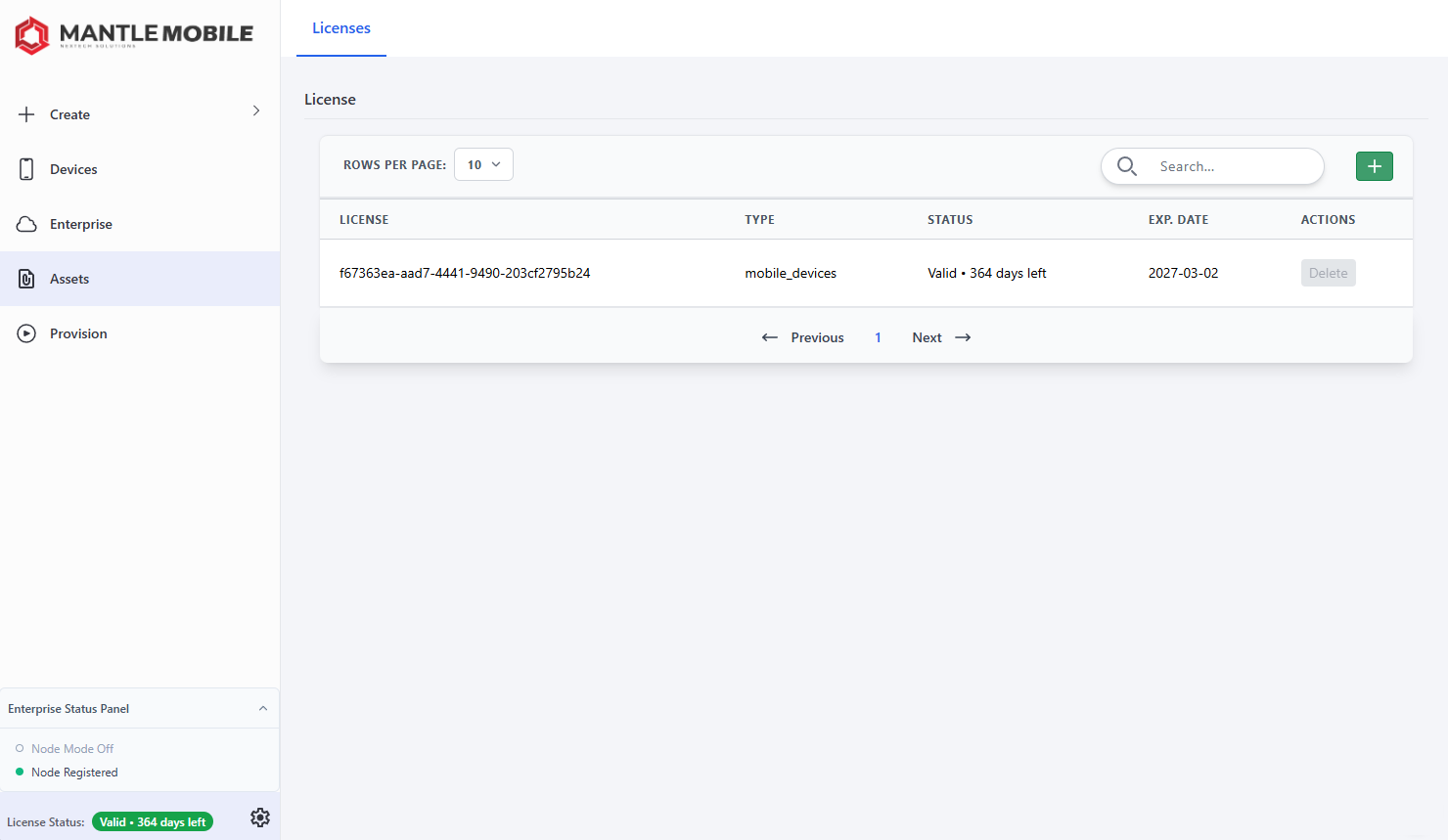

Settings contains license management.

Global UI Behaviors

Navigation away from active wizards can show leave-confirmation warnings.
Enterprise requires a full valid license.

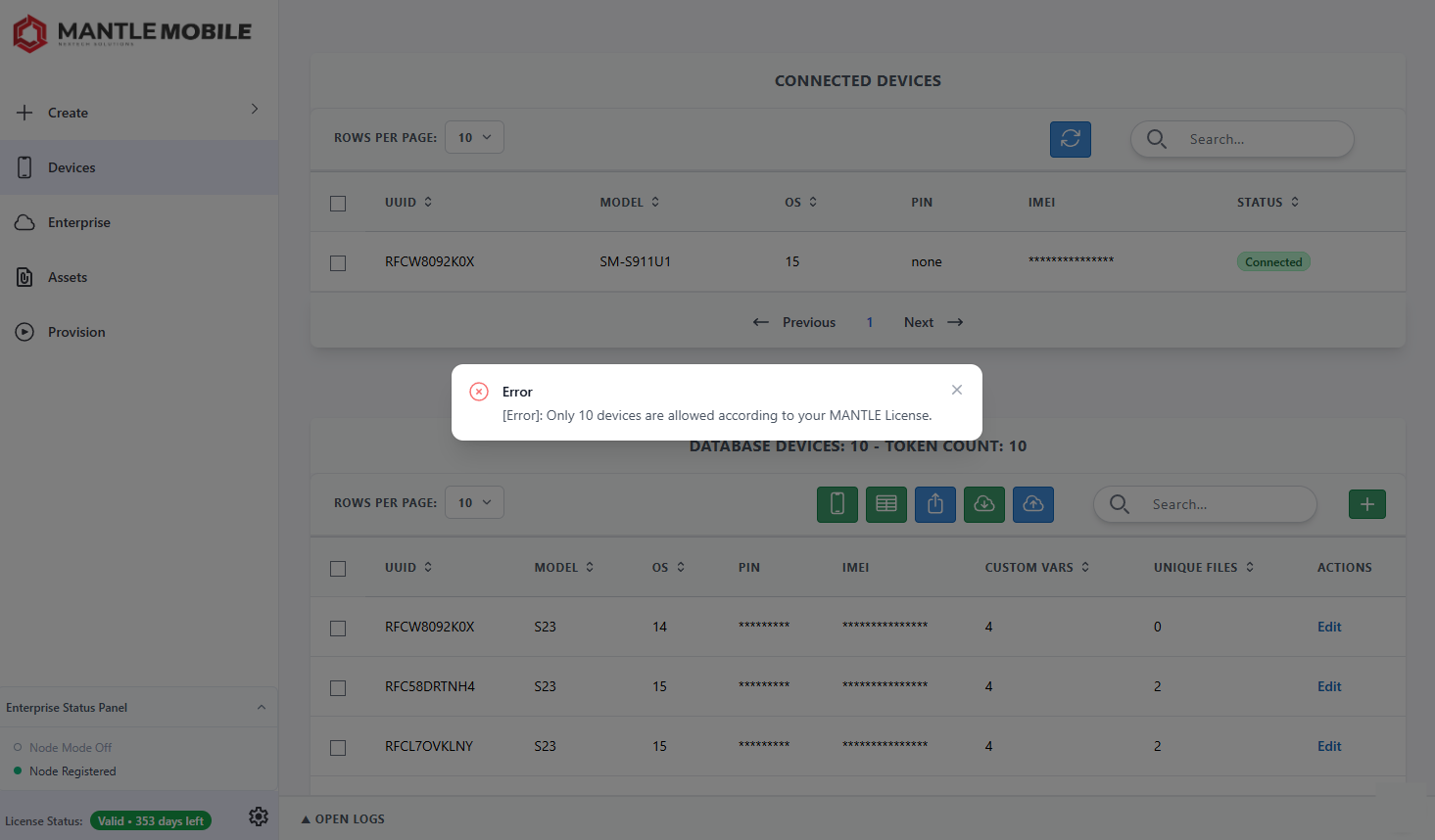

A blocking Device Limit Reached modal appears if database device count exceeds allowed token count.
