Registering a Node

Shared Steps: Logging into Mantle 2.0 and Generating a Node Token

Before registering a node from either MANTLE Mobile or MANTLE:

Terminology

Mantle 2.0 screens may still display the older "Enterprise" labels for menus and settings. Treat those references as Mantle 2.0 equivalents.

  1. Login to Mantle 2.0 (current UI label: "Enterprise").

  2. Generate a Node Token:

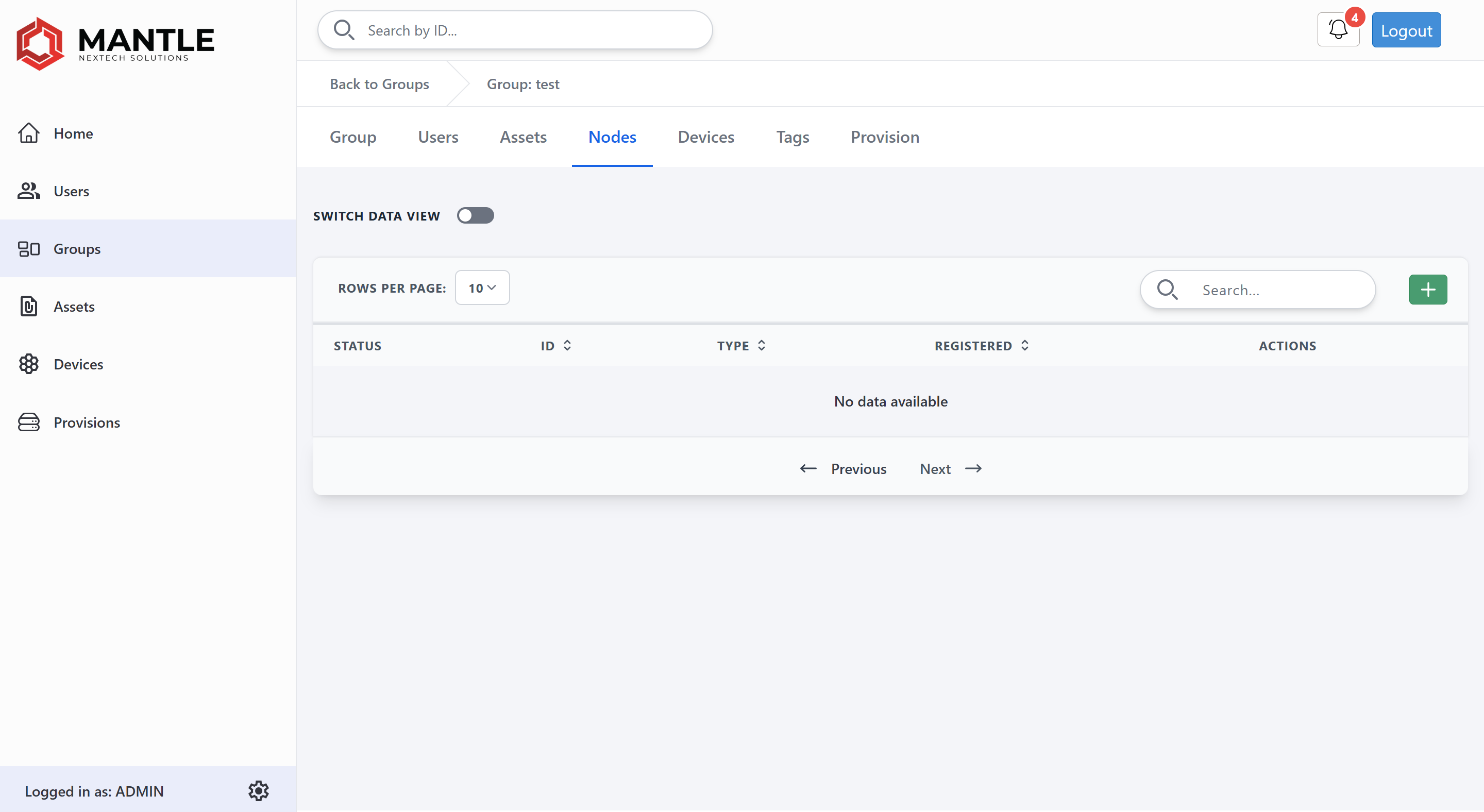

    1. Navigate to the Groups section in the left panel.
    2. Click Nodes in the top tabs.
    3. Click Generate Registration Token and save the Node Token file to your local system.


Registering a Node from MANTLE Mobile

Registration Process

  1. Navigate to the Integrations menu from the main menu and select Mantle 2.0 Management (Enterprise Management in current UI).

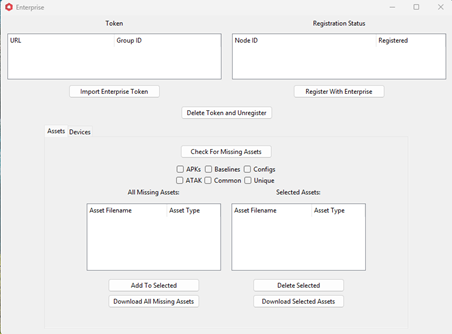

  2. In the Mantle 2.0 Management (Enterprise Management in current UI) interface:

    1. Click Import Enterprise Token and locate the token file provided by your Mantle 2.0 administrator.
    2. Select the token file and click Open.

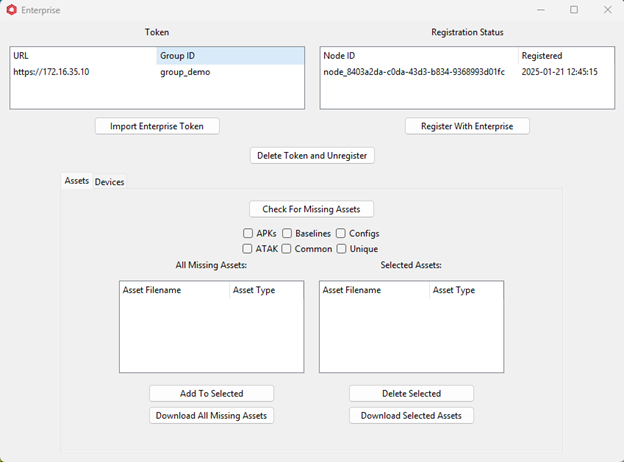

    3. Click Register With Mantle 2.0.


Registering a Node from MANTLE

Registration Process

  1. Login to MANTLE.

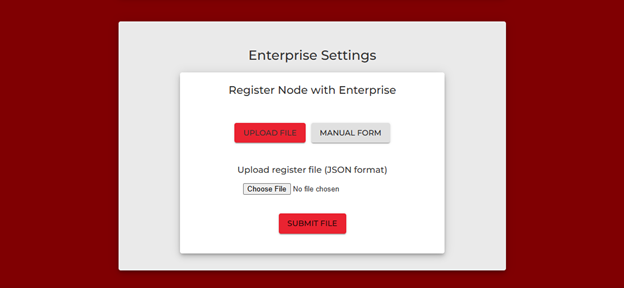

  2. Navigate to the Appliance Settings page and scroll to the Mantle 2.0 Settings (Enterprise Settings label) section.


  3. Click the Upload File button.

  4. Click the Choose File button and select the Node Token file you saved earlier.
  5. Click the Submit File button.
  6. The page should refresh.

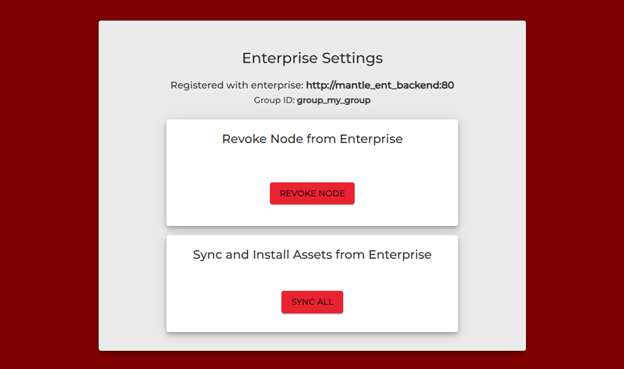

  7. Scroll down to verify the successful Mantle 2.0 connection.

  8. If successful, you will see the Mantle 2.0 connection details displayed.


Confirm Node is Registered

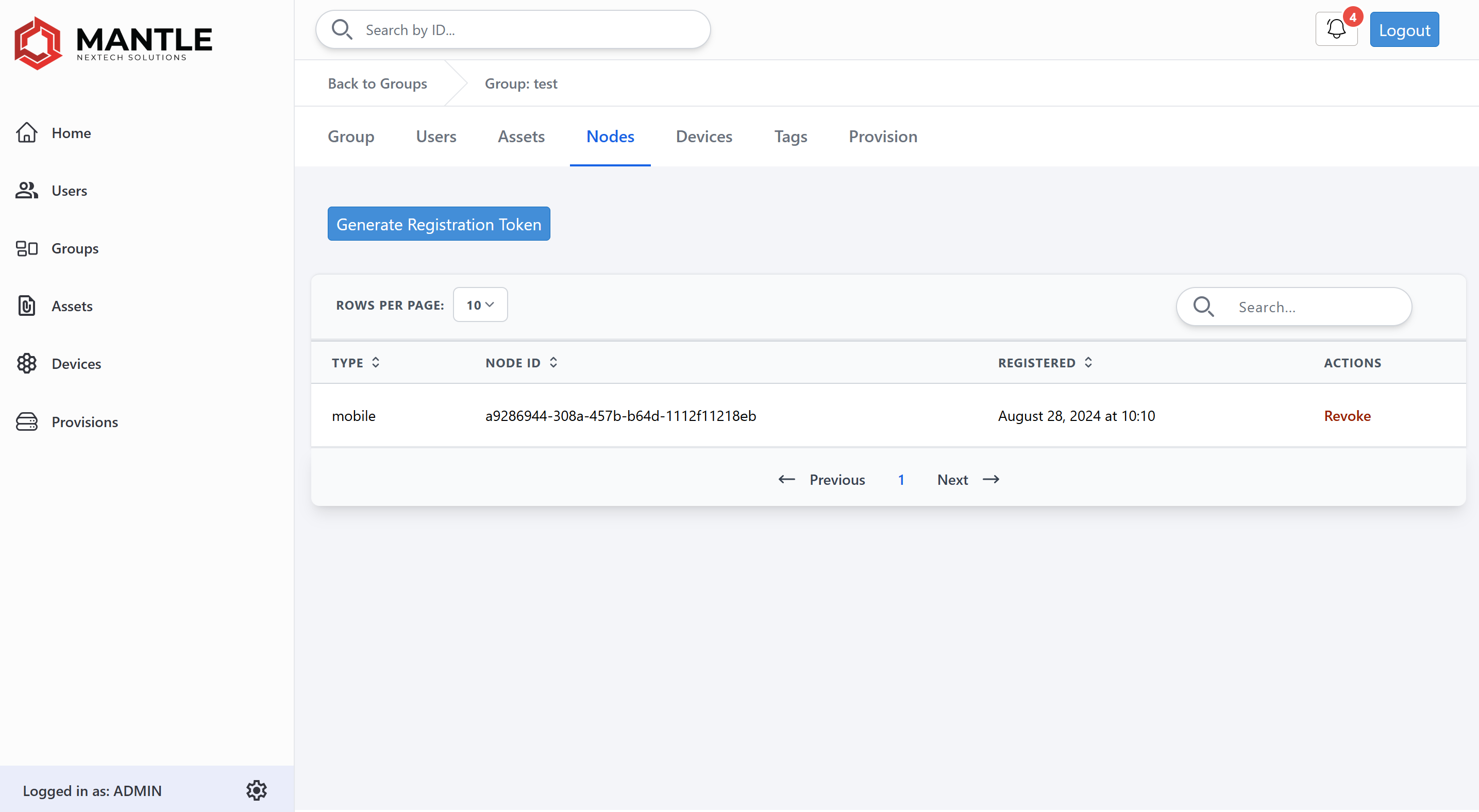

  1. Navigate to the Groups section in the Mantle 2.0 dashboard.
  2. Select the relevant group.
  3. Go to the Nodes tab.

  4. Confirm that the registered node is visible and active in the Mantle 2.0 dashboard.
